TORPEDO MODEL

The RAYMO TORPEDO mower is extremely low in height allowing you to access low clearance areas and has an outstanding climbing ability on extremely steep slopes and in undulating terrain.

The ZTR zero turn steering system in combination with 4WD traction, delivers exceptional driving and manoeuvring properties.

Remote control keeps you in a safe distance further reducing your exposure to noise, dust and vibration while you keep an eye on the surrounding environment.

For us, environmental protection, safety and operation costs always come first.

PRODUCT MODULARITY Modularity is something that makes Raymo truly unique.

Basic tractor / tool carrier – Exchangeable mower decks – Swappable power cartridges (POWERSWAP system). All mower decks and power cartridges are compatible and can be changed anytime – now or in the future allowing you to get the latest upgrades and maximum flexibility. Raymo takes modularity to a new level.

Find out below how to configure Raymo to best suit your job and what options you have in case your needs should change.

Common combination of Torpedo, deck and battery: Torpedo+ 42FLEX Deck + 120Ah battery – prices from $54,340 inc GST.

Technical Specifications

  • FULLY ELECTRIC

  • BATTERY TYPE Li-Ion

  • VOLTAGE 50.4 V

  • CAPACITY 120 Ah

  • OPERATING TIME 4-5 h

  • CHARGING TIME 6-7 h

  • FAST CHARGING TIME 2 h

  • CARTRIDGE WEIGHT 45 kg

BENEFITS

  • EMISSION FREE OPERATION

  • 4-5 H WORK TIME ON ONE PACK

  • SOUND POWER LEVEL FROM LWA = 85 dB

  • SOUND PRESSURE AT OPERATOR ́S EAR (3M) FROM LAeq = 68.7dB

  • EXTREMELY LOW RUNNING COST

DIMENSIONS

WORK
Length 205 cm
Width 115 cm
Height 51 cm
Weight 238 kg

EASY TRANSPORT
Very easy transport on mid-vans or on trailers.

DIMENSIONS

TRANSPORT Length 155 or 205 cm
Width 115 cm
Height 91 or 51 cm

Decks

Do you need to mow sports fields? Parks? Residential area or schools? Steep and undulating terrains and slopes? Solar parks or other places with tall, rough and overgrown grass? ecologically sensitive areas? Raymo can be configured to fit all these applications. Just choose the right cutting deck!

From $49,400 + GST

  • VERSATILE AND FLEXIBLE MOWER DECK FOR VARIOUS APPLICATIONS

    R42FLEX is the basic multifunctional rotary mower deck that can be used for many different applications. It has several unique features that make this cutting head truly versatile.

    MULCHING or REAR DISCHARGE – a simple installation or removal of mulching covers allow you to choose between mulching or rear discharge.

    CASTER WHEELS or SKIDS – When operating on slopes or in undulating terrain you can keep the caster wheels on. On level surfaces they can be removed making the whole mower more compact and very manoeuvrable in tight spaces.

    NON-SCALPING – This deck was designed as a non-scalping deck. Even when driving over sharp edges and heavy undulations the blades are prevented from making contact with ground.

    EDGING – the mower deck design enables you to mow very close to obstacles and drive along walls and kerbs. Protective plastic covers and corner roller wheels protect both the mower deck and the nearby obstacles. It can easily be tilted to a service position for maintenance and cleaning.

    R42FLEX can be used for manicured mowing as well as general municipal applications where taller grass needs to be cut.

From $54,900 + GST

  • POWERFUL MOWER DECK FOR TALL GRASS, SOLAR FARMS AND OTHER ROUGH CUT APPLICATIONS

    R48CRAFT was designed specifically for rough municipal mowing and for vegetation control in solar farms where grass is often overgrown and where contact with the PV panel supporting structure is a permanent threat.

    The R48CRAFT cutting deck is protected by a robust steel frame with nylon bumpers and features suspended caster wheels that absorb excessive vibration in undulating terrain. The height of cut ranges from 60 to 140 mm and can be adjusted by the means of pins that are secured against loss in high vibration conditions. The cutting device itself consists of new proprietary direct drive electric motors (providing twice as much power and torque as the R42FLEX and R52TURF deck motors ) and a special Raymo-design swing blade system with a rear discharge function. If you ask for power, the R48CRAFT deck delivers it.

    Great for mowing taller and thicker grass or rough areas or just for working really fast on regular council grounds.

    The cutting deck power allows for high mowing speeds.

    As always, this cutting deck is compatible with all Raymo Torpedo carriers.

From $51,400 + GST

  • HIGH PRODUCTIVITY MOWER DECK WITH FINE MULCHING OPTION FOR TURF APPLICATIONS

    R52TURF mower deck was designed primarily for areas where high mowing productivity is needed and where quality of cut matters.

    MULCHING or REAR DISCHARGE – it is possible choose between rear discharge and mulching by simply installing or removing mulching covers. For very heavy mulching, an optional adjustable DEEP MULCHING kit is also available.

    NON SCALPING – This mower deck was also designed as a non-scalping deck and allows for operation on slopes and undulations without damaging turf.

    PRODUCTIVITY – The 52 in / 132 cm of cutting width deliver an hourly coverage up to 2 acres / 8000 m2. Just as other RAYMO rotary decks R52TURF can also be tilted to a service position for super easy maintenance and cleaning. No belts, no gearboxes, no fluids. Simple mechanical height of cut adjustment. The mower deck is fully compatible with all existing RAYMO Torpedo tool carriers and can be dis-/mounted within a few seconds.

  • Power

    Would you benefit from a purely electric drive?

    A fully electric POWERSWAP cartridge allows for a purely electric operation and no maintenance besides charging. The power packs are fitted with automotive grade cells that ensure long and reliable battery life.

    Detailed battery information can be accessed through an integrated full-colour display.

    Fast charging and super-fast charging options are also available.

    The power cartridge is removable and exchangeable allowing you to work with another battery while you are charging.

    Enjoy hours and hours of clean and silent work. Extra warranty is provided for the batteries.

  • Battery

    BATTERY TYPE Li-Ion

    VOLTAGE 50.4 V

    CAPACITY 150 Ah

    CARTRIDGE WEIGHT 45 kg

    Power Cartridges

    Powerswap 120Ah battery

    Powerswap 150Ah powerpack

  • Parts & Accessories

    Modularity is something that makes RAYMO truly unique. Basic tractor / tool carrier – Exchangeable mower decks – Swappable power cartridges (POWERSWAP system).

    All mower decks, parts, accessories and power cartridges are compatible and can be changed anytime – now or in the future allowing you to get the latest upgrades and maximum flexibility. RAYMO takes modularity to a new level.

All Terrain Wheels

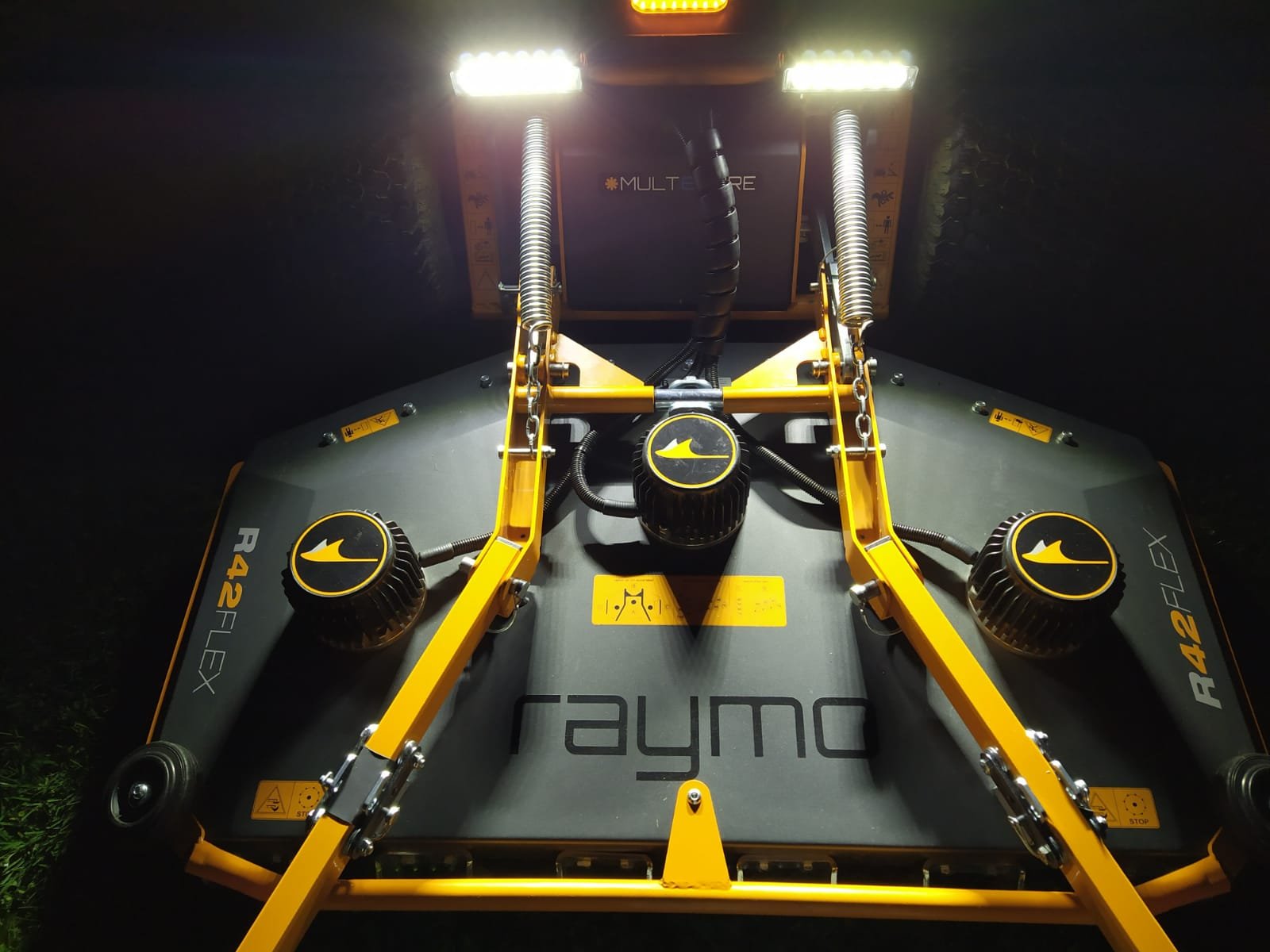

Headlights

RAYLINK

Raylink Telemetry is a remote monitoring subscription. First 2 years subscription comes standard with purchase.

The RAYLINK system mounted on the TORPEDO carrier and provides telemetry and system status information to a cloud space, where it can be accessed by customers as well as service centres.

Customers can benefit from a fleet management system and acquire detailed work logs and system status data such as Live GNSS position + past operation logs, current machine configuration (connected power cartridges, mower decks), serial numbers, SW versions, operating hours, system modes and battery information (state of charge, state of health, cycle count…).

This can be converted into job reports.
